| Part Number | UDD32C05L01 | UDD32C15L01 | UDD32C03L01 |
|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 15V (Max) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 6V | 16.7V | 4V |
| Voltage - Clamping (Max) @ Ipp | 18.3V | 35V | 15V |
| Current - Peak Pulse (10/1000µs) | 17A (8/20µs) | 5A (8/20µs) | 19A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | DVI, Ethernet, USB 2.0, USB 3.0 | DVI, Ethernet, USB 2.0, USB 3.0 | DVI, Ethernet, USB 2.0, USB 3.0 |
| Capacitance @ Frequency | 0.8pF @ 1MHz | 0.8pF @ 1MHz | 0.8pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

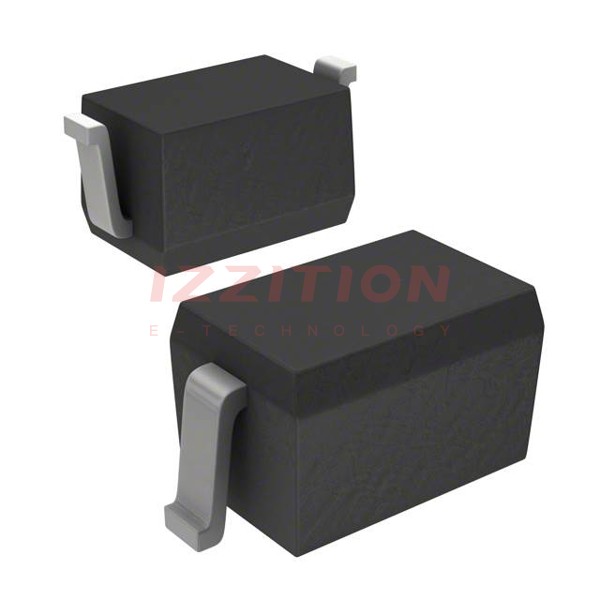

| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 | SOD-323 | SOD-323 |
