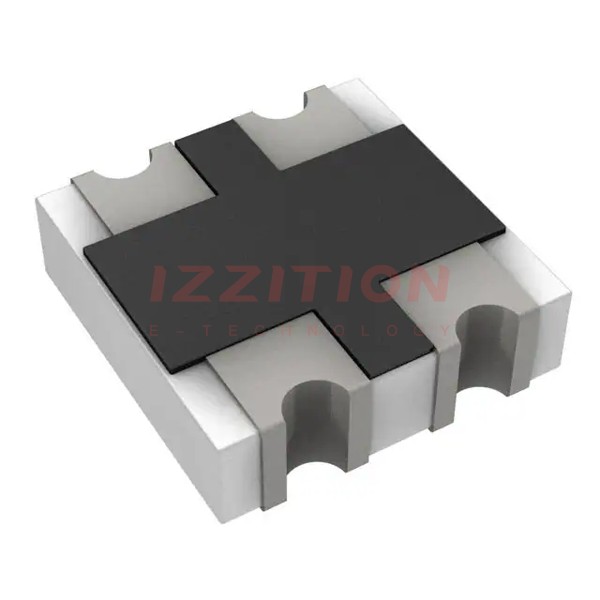

YAGEO-TC122-JR-073RL - Resistor Networks, Arrays Product Specifications and Latest Quotes

Part Number	TC122-JR-073RL	TC122-JR-070RL	TC122-JR-0730RL	TC122-JR-0733RL	TC122-JR-0736RL	TC122-JR-0739RL
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active
Circuit Type	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated
Resistance (Ohms)	3	0.0	30	33	36	39
Tolerance	±5%	Jumper	±5%	±5%	±5%	±5%
Number of Resistors	2	2	2	2	2	2
Resistor Matching Ratio	-	-	-	-	-	-
Resistor-Ratio-Drift	-	-	-	-	-	-
Number of Pins	4	4	4	4	4	4
Power Per Element	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW
Temperature Coefficient	±200ppm/°C	-	±200ppm/°C	±200ppm/°C	±200ppm/°C	±200ppm/°C
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Applications	DDRAM, SDRAM	DDRAM, SDRAM	DDRAM, SDRAM	DDRAM, SDRAM	DDRAM, SDRAM	DDRAM, SDRAM
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)
Height - Seated (Max)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)

YAGEO TC122-JR-073RL
