YAGEO-TC122-JR-0710RL - Resistor Networks, Arrays Product Specifications and Latest Quotes

Part Number	TC122-JR-0710RL	TC122-JR-0715RL	TC122-JR-0730RL	TC122-JR-070RL	TC122-JR-07100RL	TC122-JR-0710KL
Manufacturer	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Product Status	Active	Active	Active	Active	Active	Active
Circuit Type	Isolated	Isolated	Isolated	Isolated	Isolated	Isolated
Resistance (Ohms)	10	15	30	0.0	100	10k
Tolerance	±5%	±5%	±5%	Jumper	±5%	±5%
Number of Resistors	2	2	2	2	2	2
Resistor Matching Ratio	-	-	-	-	-	-
Resistor-Ratio-Drift	-	-	-	-	-	-
Number of Pins	4	4	4	4	4	4
Power Per Element	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW	62.5mW
Temperature Coefficient	±200ppm/°C	±200ppm/°C	±200ppm/°C	-	±200ppm/°C	±200ppm/°C
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Applications	DDRAM, SDRAM	DDRAM, SDRAM	DDRAM, SDRAM	DDRAM, SDRAM	DDRAM, SDRAM	DDRAM, SDRAM
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave	0404 (1010 Metric), Concave
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)	0.039" L x 0.039" W (1.00mm x 1.00mm)
Height - Seated (Max)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)	0.016" (0.40mm)

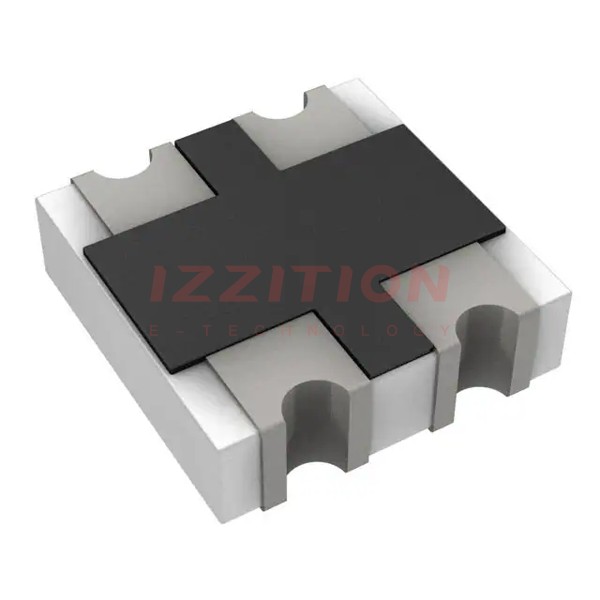

YAGEO TC122-JR-0710RL
