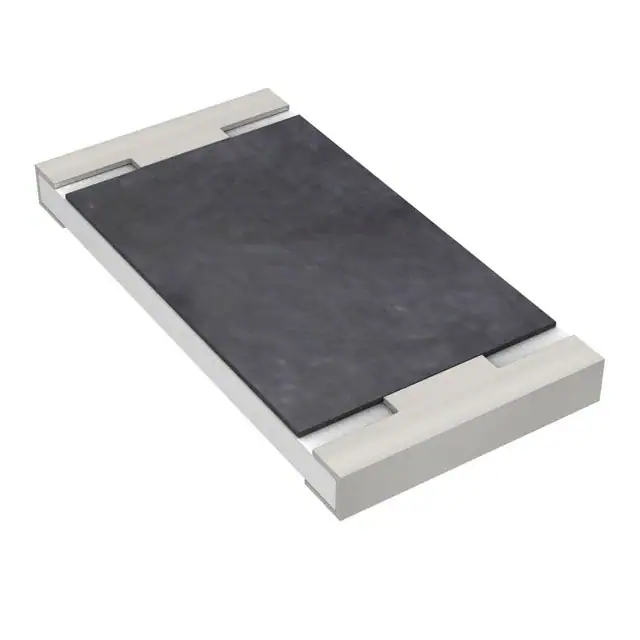

| Part Number | SR2512JK-7W10RL | SR2512JK-7W180RL | SR2512FK-7W10RL | SR2512JK-7W100RL |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Resistance | 10 Ohms | 180 Ohms | 10 Ohms | 100 Ohms |
| Tolerance | ±5% | ±5% | ±1% | ±5% |
| Power (Watts) | 2W | 2W | 2W | 2W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±200ppm/°C | ±100ppm/°C | ±200ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 | 2512 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.250" L x 0.122" W (6.35mm x 3.10mm) | 0.250" L x 0.122" W (6.35mm x 3.10mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - |
