SR0805FR-471RL
  • Share:

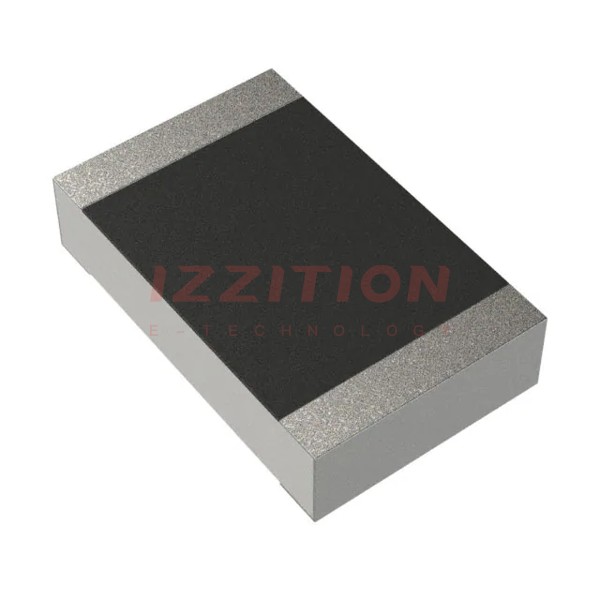

YAGEO SR0805FR-471RL

Manufacturer No:
SR0805FR-471RL
Manufacturer:
YAGEO
Package:
Tape & Reel (TR)
Datasheet:
SR0805FR-471RL Datasheet
ECAD Model:
-
Description:
RES 1 OHM 1% 1/2W 0805
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:1 Ohms
Tolerance:±1%
Power (Watts):0.5W, 1/2W
Composition:Thick Film
Features:Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805
Ratings:AEC-Q200
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.024" (0.60mm)
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.70
749

Please send RFQ , we will respond immediately.

Similar Products

Part Number SR0805FR-471RL SR0805FR-4710RL   SR0805FR-4715RL   SR0805FR-471KL
Manufacturer YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active
Resistance 1 Ohms 10 Ohms 15 Ohms 1 kOhms
Tolerance ±1% ±1% ±1% ±1%
Power (Watts) 0.5W, 1/2W 0.5W, 1/2W 0.5W, 1/2W 0.5W, 1/2W
Composition Thick Film Thick Film Thick Film Thick Film
Features Automotive AEC-Q200, Pulse Withstanding Automotive AEC-Q200, Pulse Withstanding Automotive AEC-Q200, Pulse Withstanding Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C ±200ppm/°C ±100ppm/°C ±100ppm/°C
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Package / Case 0805 (2012 Metric) 0805 (2012 Metric) 0805 (2012 Metric) 0805 (2012 Metric)
Supplier Device Package 0805 0805 0805 0805
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm) 0.079" L x 0.049" W (2.00mm x 1.25mm) 0.079" L x 0.049" W (2.00mm x 1.25mm) 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm)
Number of Terminations 2 2 2 2
Failure Rate - - - -
