SQP10AJB-560R
  • Share:

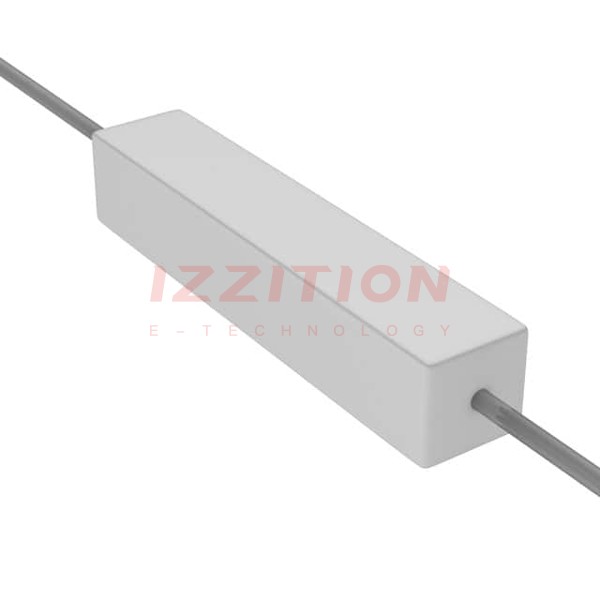

YAGEO SQP10AJB-560R

Manufacturer No:
SQP10AJB-560R
Manufacturer:
YAGEO
Package:
Tray
Datasheet:
SQP10AJB-560R Datasheet
ECAD Model:
-
Description:
RES 560 OHM 5% 10W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:560 Ohms
Tolerance:±5%
Power (Watts):10W
Composition:Metal Oxide Film
Features:Anti-Arc, Flame Proof, Moisture Resistant, Safety
Temperature Coefficient:-
Operating Temperature:-55°C ~ 155°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.81
1,199

Please send RFQ , we will respond immediately.

Similar Products

Part Number SQP10AJB-560R SQP10AJB-56R   SQP10AJB-160R   SQP10AJB-360R   SQP10AJB-510R
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active
Resistance 560 Ohms 56 Ohms 160 Ohms 360 Ohms 510 Ohms
Tolerance ±5% ±5% ±5% ±5% ±5%
Power (Watts) 10W 10W 10W 10W 10W
Composition Metal Oxide Film Wirewound Wirewound Wirewound Wirewound
Features Anti-Arc, Flame Proof, Moisture Resistant, Safety Anti-Arc, Flame Proof, Moisture Resistant, Safety Anti-Arc, Flame Proof, Moisture Resistant, Safety Anti-Arc, Flame Proof, Moisture Resistant, Safety Anti-Arc, Flame Proof, Moisture Resistant, Safety
Temperature Coefficient - - - - -
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Package / Case Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial
Size / Dimension 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm)
Height - Seated (Max) - - - - -
Number of Terminations 2 2 2 2 2
Failure Rate - - - - -
