Please send RFQ , we will respond immediately.

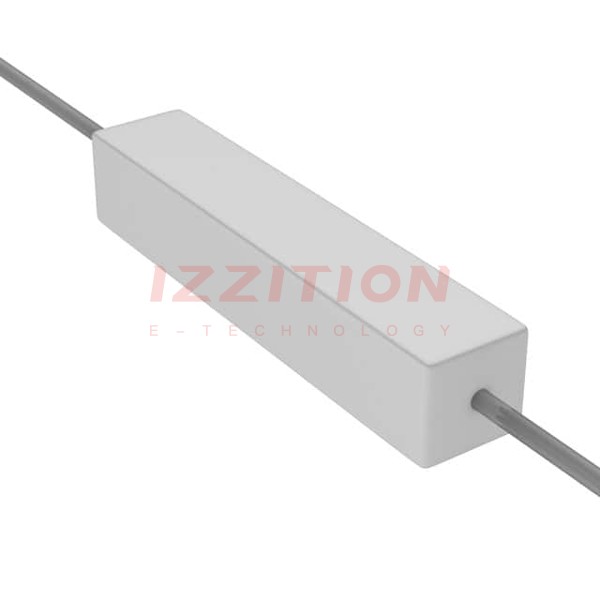

| Part Number | SQP10AJB-20R | SQP10AJB-30R | SQP10AJB-27R | SQP10AJB-820R | SQP10AJB-22R | SQP10AJB-620R | SQP10AJB-24R | SQP10AJB-240R | SQP10AJB-270R | SQP10AJB-220R | SQP10AJB-10R | SQP10AJB-120R | SQP10AJB-200R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 Ohms | 30 Ohms | 27 Ohms | 820 Ohms | 22 Ohms | 620 Ohms | 24 Ohms | 240 Ohms | 270 Ohms | 220 Ohms | 10 Ohms | 120 Ohms | 200 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W | 10W |
| Composition | Wirewound | Wirewound | Wirewound | Metal Oxide Film | Wirewound | Metal Oxide Film | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) | 0.374" x 0.354" Rectangular x 1.890" L (9.50mm x 9.00mm x 48.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
