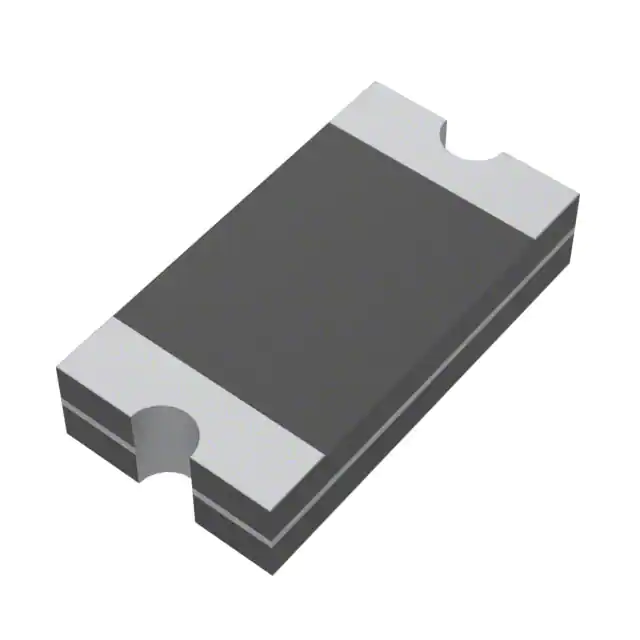

| Part Number | SMD2920B260TF/24 | SMD2920B200TF/24 |
|---|---|---|
| Manufacturer | YAGEO | YAGEO |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 24V | 24V |
| Current - Max | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 2.6 A | 2 A |
| Current - Trip (It) | 5 A | 4 A |
| Time to Trip | 8 s | 5 s |
| Resistance - Initial (Ri) (Min) | 14 mOhms | 20 mOhms |
| Resistance - Post Trip (R1) (Max) | 75 mOhms | 125 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2920 (7351 Metric), Concave | 2920 (7351 Metric), Concave |
| Size / Dimension | 0.290" L x 0.202" W (7.36mm x 5.12mm) | 0.290" L x 0.202" W (7.36mm x 5.12mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.047" (1.20mm) | 0.049" (1.25mm) |
| Lead Spacing | - | - |
