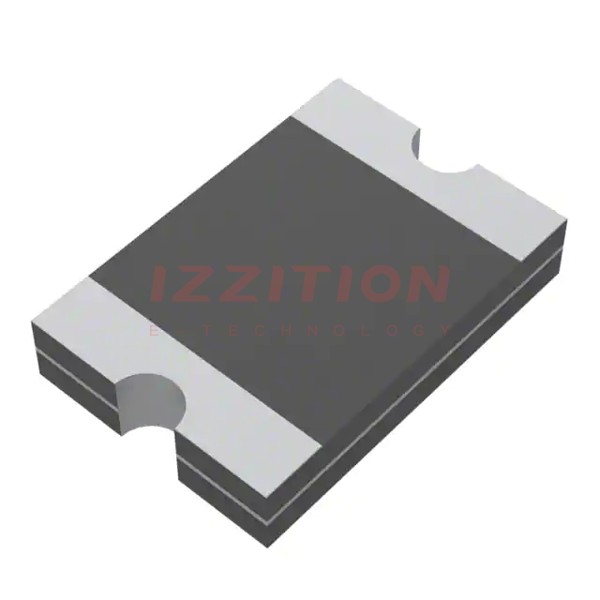

| Part Number | SMD1812B150TF/12 | SMD1812B150TF/16 |
|---|---|---|
| Manufacturer | YAGEO | YAGEO |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 12V | 16V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.5 A | 1.5 A |
| Current - Trip (It) | 3 A | 2.8 A |
| Time to Trip | 500 ms | 500 ms |
| Resistance - Initial (Ri) (Min) | 40 mOhms | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 120 mOhms | 120 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Lead Spacing | - | - |
