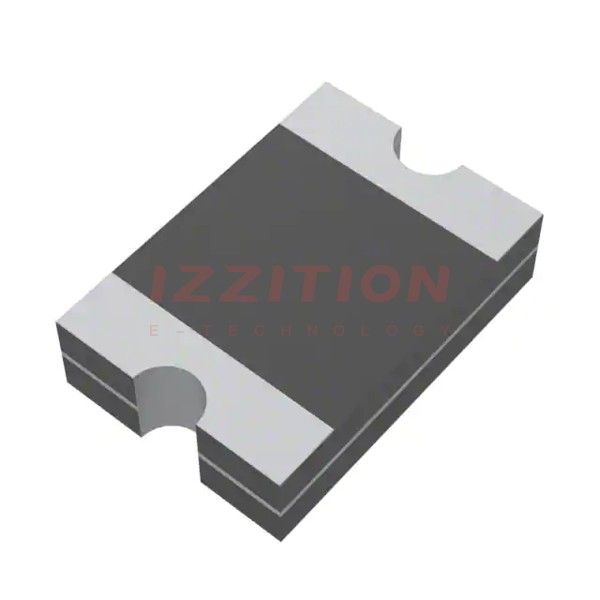

| Part Number | SMD1210B150TFT | SMD1210B110TFT |
|---|---|---|
| Manufacturer | YAGEO | YAGEO |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 8V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 1.5 A | 1.1 A |
| Current - Trip (It) | 3 A | 2.2 A |
| Time to Trip | 300 ms | 300 ms |
| Resistance - Initial (Ri) (Min) | 30 mOhms | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 120 mOhms | 210 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.042" (1.07mm) | 0.033" (0.85mm) |
| Lead Spacing | - | - |
