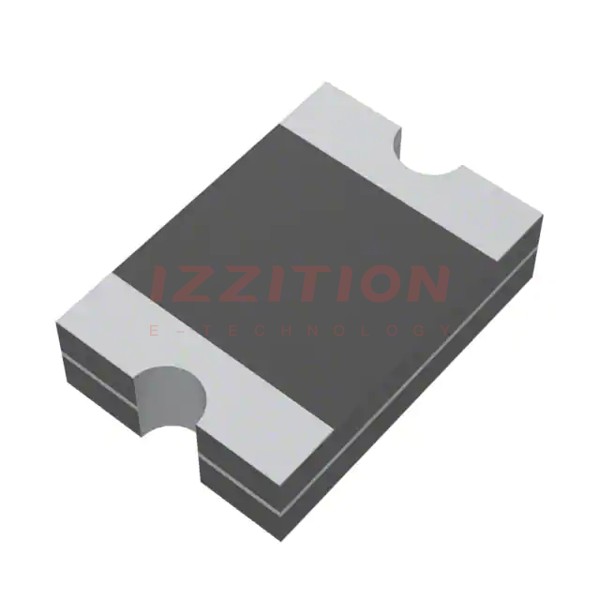

| Part Number | SMD1210B020TF | SMD1210B050TF | SMD1210B010TF |
|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 13.2V | 30V |
| Current - Max | 10 A | 100 A | 10 A |
| Current - Hold (Ih) (Max) | 200 mA | 500 mA | 200 mA |
| Current - Trip (It) | 400 mA | 1 A | 400 mA |
| Time to Trip | 20 ms | 50 ms | 20 ms |
| Resistance - Initial (Ri) (Min) | 800 mOhms | 250 mOhms | 800 mOhms |
| Resistance - Post Trip (R1) (Max) | 5 Ohms | 900 mOhms | 5 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.033" (0.85mm) | 0.039" (1.00mm) |
| Lead Spacing | - | - | - |
