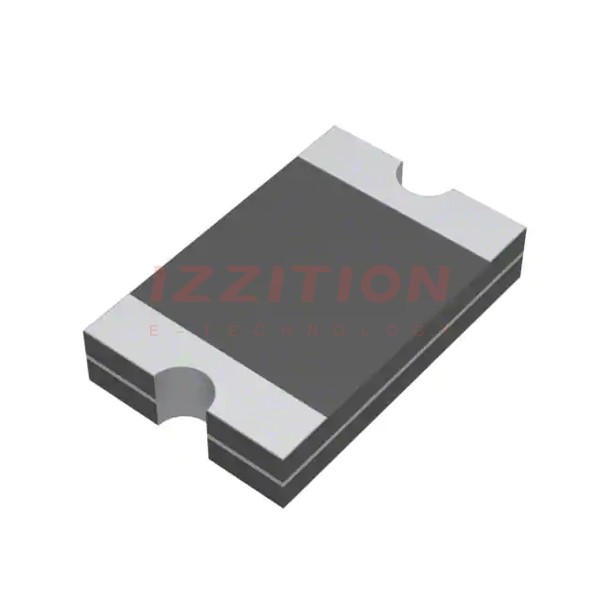

| Part Number | SMD0805B035TF | SMD0805B075TF |
|---|---|---|
| Manufacturer | YAGEO | YAGEO |
| Product Status | Active | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 6V | 6V |
| Current - Max | 100 A | 40 A |
| Current - Hold (Ih) (Max) | 350 mA | 750 mA |
| Current - Trip (It) | 750 mA | 1.5 A |
| Time to Trip | 100 ms | 200 ms |
| Resistance - Initial (Ri) (Min) | 250 mOhms | 90 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.2 Ohms | 350 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric), Concave | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.083" L x 0.053" W (2.10mm x 1.35mm) | 0.083" L x 0.053" W (2.10mm x 1.35mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.049" (1.25mm) |
| Lead Spacing | - | - |
