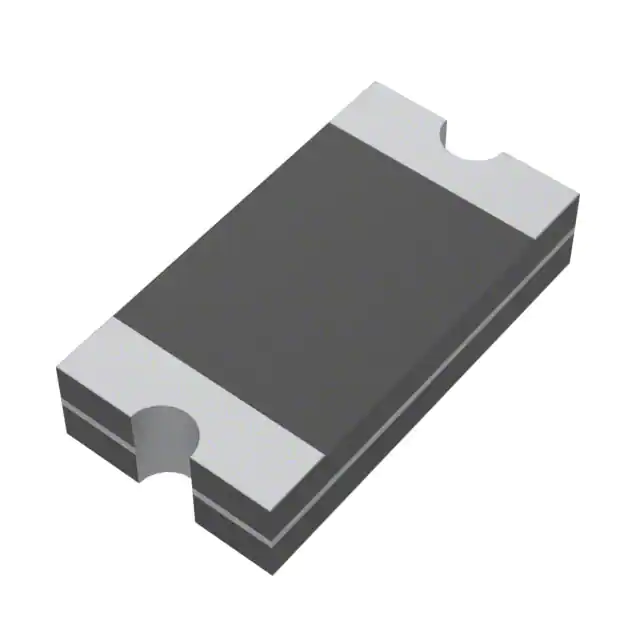

| Part Number | SMD0603B020TF | SMD0603B050TF | SMD0603B025TF | SMD0603B010TF |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Type | Polymeric | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 9V | 6V | 9V | 15V |
| Current - Max | 40 A | 40 A | 40 A | 40 A |
| Current - Hold (Ih) (Max) | 200 mA | 500 mA | 250 mA | 100 mA |
| Current - Trip (It) | 500 mA | 1 A | 550 mA | 300 mA |
| Time to Trip | 60 ms | 100 ms | 80 ms | 1 s |
| Resistance - Initial (Ri) (Min) | 550 mOhms | 100 mOhms | 500 mOhms | 900 mOhms |
| Resistance - Post Trip (R1) (Max) | 3.5 Ohms | 680 mOhms | 3 Ohms | 6 Ohms |
| Resistance - 25°C (Typ) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.039" (0.98mm) | 0.061" (1.55mm) | 0.039" (1.00mm) | 0.039" (0.98mm) |
| Lead Spacing | - | - | - | - |
