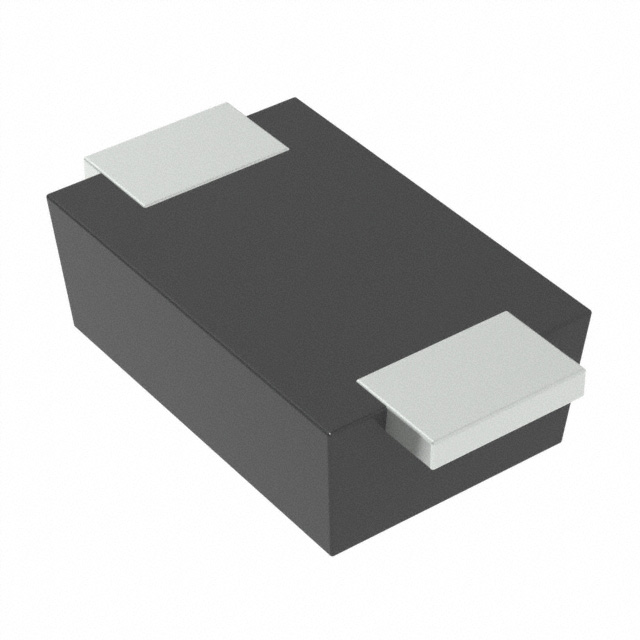

| Part Number | SJD12C12L01 | SJD12C15L01 | SJD12C13L01 | SJD12C22L01 |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 12V | 15V | 13V | 22V |
| Voltage - Breakdown (Min) | 13.3V | 16.7V | 14.4V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 19.9V | 24.4V | 21.5V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 10.1A | 8.2A | 9.3A | 5.7A |
| Power - Peak Pulse | 200W | 200W | 200W | 200W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-219AA | DO-219AA | DO-219AA | DO-219AA |
| Supplier Device Package | SOD-123S | SOD-123S | SOD-123S | SOD-123S |
