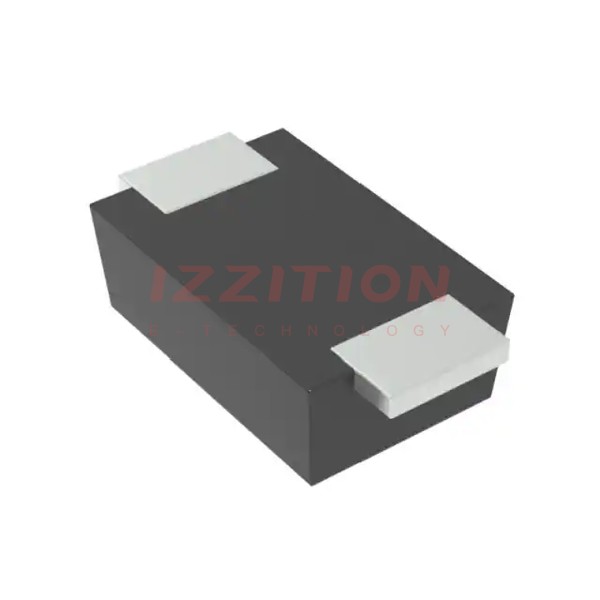

| Part Number | SJD12A8.5L01 | SJD12C8.5L01 | SJD12A6.5L01 | SJD12A7.5L01 |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - |
| Voltage - Reverse Standoff (Typ) | 8.5V | 8.5V | 6.5V | 7.5V |
| Voltage - Breakdown (Min) | 9.44V | 9.44V | 7.22V | 8.33V |
| Voltage - Clamping (Max) @ Ipp | 14.4V | 14.4V | 11.2V | 12.9V |
| Current - Peak Pulse (10/1000µs) | 13.9A | 13.9A | 17.9A | 15.5A |
| Power - Peak Pulse | 200W | 200W | 200W | 200W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-219AA | DO-219AA | DO-219AA | DO-219AA |
| Supplier Device Package | SOD-123S | SOD-123S | SOD-123S | SOD-123S |
