Please send RFQ , we will respond immediately.

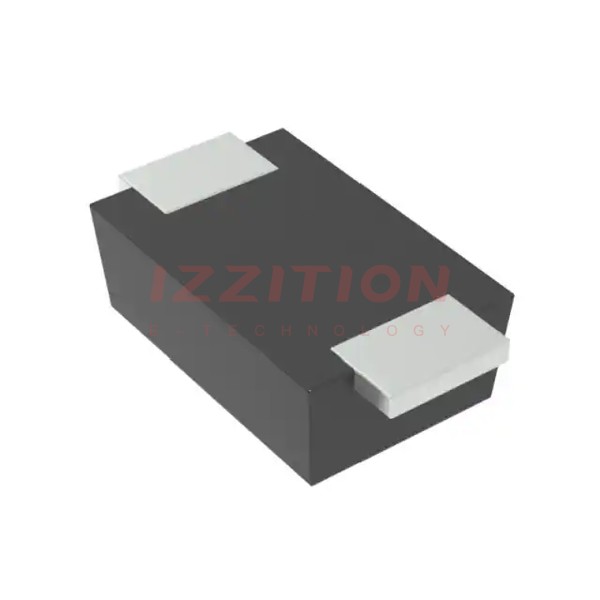

| Part Number | SJD12A26L01 | SJD12A36L01 | SJD12A22L01 |
|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 26V | 36V | 22V |
| Voltage - Breakdown (Min) | 28.9V | 40V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 42.1V | 58.1V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 4.8A | 3.5A | 5.7A |
| Power - Peak Pulse | 200W | 1000W (1kW) | 200W |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-219AA | DO-219AA | DO-219AA |
| Supplier Device Package | SOD-123S | SOD-123S | SOD-123S |
