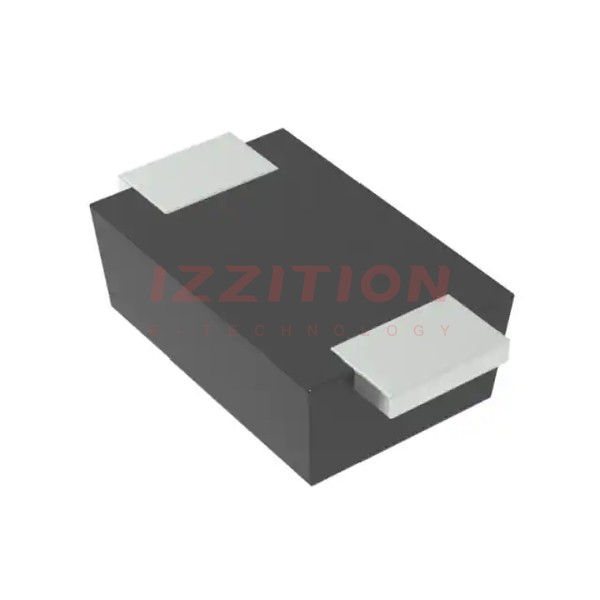

| Part Number | SJD12A07L01 | SJD12A08L01 | SJD12A17L01 | SJD12A05L01 |
|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 7V | 8V | 17V | 5V |
| Voltage - Breakdown (Min) | 7.78V | 8.89V | 18.9V | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 12V | 13.6V | 27.6V | 9.2V |
| Current - Peak Pulse (10/1000µs) | 16.7A | 14.7A | 7.3A | 21.8A |
| Power - Peak Pulse | 200W | 200W | 200W | 1000W (1kW) |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-219AA | DO-219AA | DO-219AA | DO-219AA |
| Supplier Device Package | SOD-123S | SOD-123S | SOD-123S | SOD-123S |
