Please send RFQ , we will respond immediately.

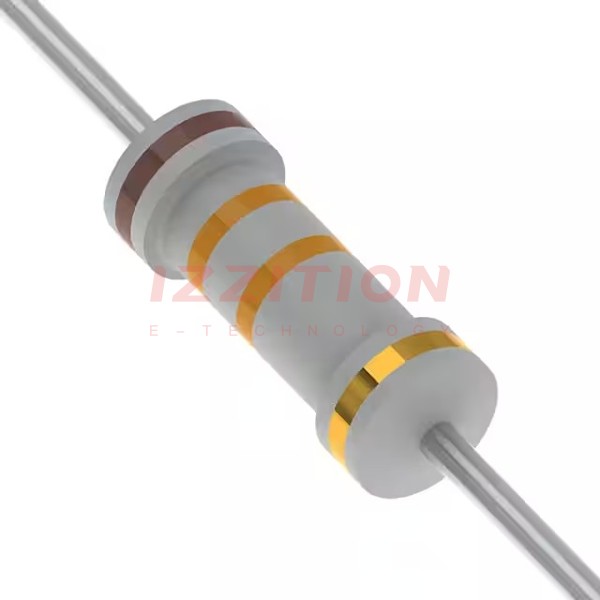

| Part Number | RSF500JT-91-13K | RSF500JT-91-13R | RSF500JT-91-15K | RSF500JT-91-16K | RSF500JT-91-1K | RSF500JT-91-33K | RSF500JT-91-3K | RSF500JT-91-43K | RSF500JT-91-10K | RSF500JT-91-11K | RSF500JT-91-12K | RSF500JT-91-130K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 13 kOhms | 13 Ohms | 15 kOhms | 16 kOhms | 1 kOhms | 33 kOhms | 3 kOhms | 43 kOhms | 10 kOhms | 11 kOhms | 12 kOhms | 130 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
