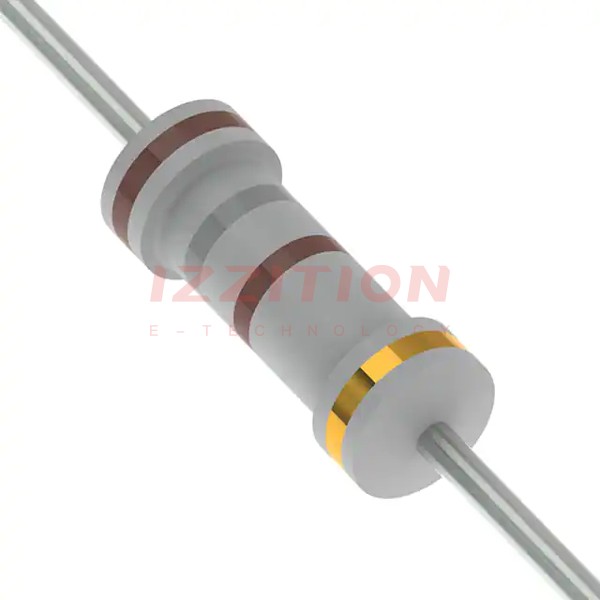

| Part Number | RSF500JB-91-180R | RSF500JB-91-18R | RSF500JB-91-680R | RSF500JB-91-100R | RSF500JB-91-10R | RSF500JB-91-110R | RSF500JB-91-120R | RSF500JB-91-130R | RSF500JB-91-150R | RSF500JB-91-160R | RSF500JB-91-180K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 180 Ohms | 18 Ohms | 680 Ohms | 100 Ohms | 10 Ohms | 110 Ohms | 120 Ohms | 130 Ohms | 150 Ohms | 160 Ohms | 180 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) | 0.335" Dia x 0.965" L (8.50mm x 24.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
