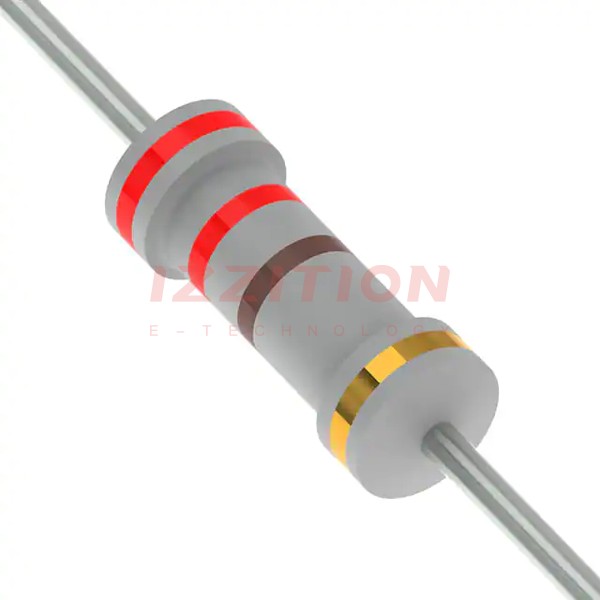

| Part Number | RSF3WMJR-73-220R | RSF3WMJR-73-22R | RSF3WMJR-73-240R | RSF3WMJR-73-620R | RSF3WMJR-73-820R | RSF3WMJR-73-120R | RSF3WMJR-73-20R | RSF3WMJR-73-220K |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 220 Ohms | 22 Ohms | 240 Ohms | 620 Ohms | 820 Ohms | 120 Ohms | 20 Ohms | 220 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) | 0.256" Dia x 0.689" L (6.50mm x 17.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
