Please send RFQ , we will respond immediately.

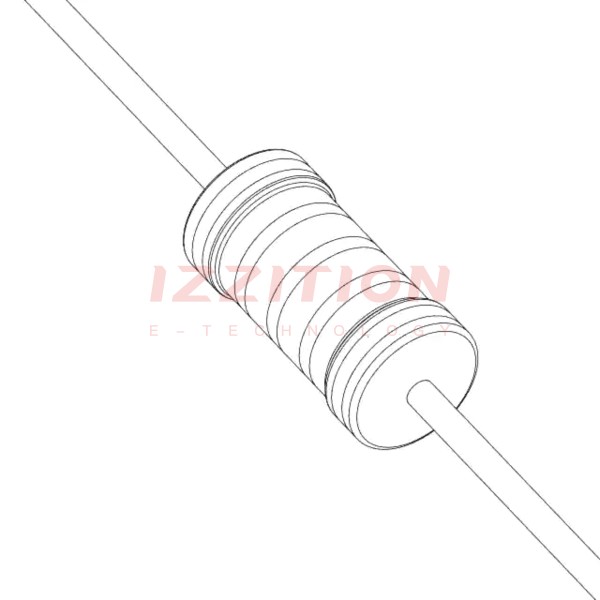

| Part Number | RSF2WSJR-52-0R2 | RSF2WSJR-52-1R2 | RSF2WSJR-52-2R2 | RSF2WSJR-52-0R22 | RSF2WSJR-52-0R24 | RSF2WSJR-52-0R27 | RSF2WSJR-52-0R3 | RSF2WSJR-52-0R62 | RSF2WSJR-52-0R82 | RSF2WSJR-52-0R1 | RSF2WSJR-52-0R12 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 200 mOhms | 1.2 Ohms | 2.2 Ohms | 220 mOhms | 240 mOhms | 270 mOhms | 300 mOhms | 620 mOhms | 820 mOhms | 100 mOhms | 120 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) | 0.177" Dia x 0.453" L (4.50mm x 11.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
