Please send RFQ , we will respond immediately.

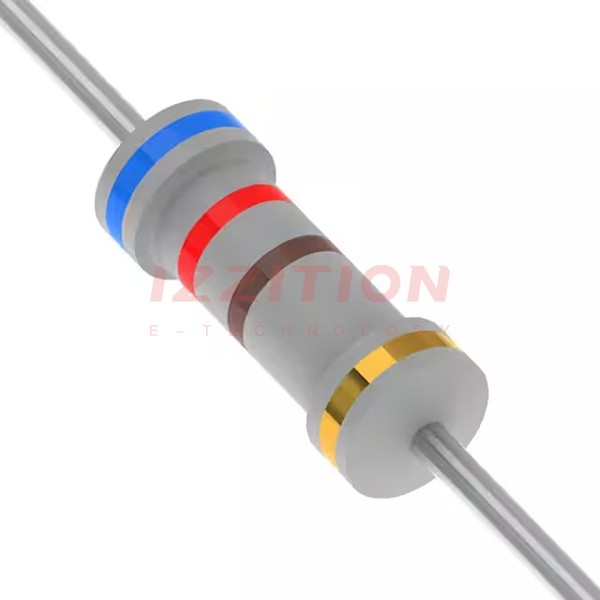

| Part Number | RSF1WSJT-PN620R | RSF1WSJT-PN62R | RSF1WSJT-PN680R | RSF1WSJT-PN820R | RSF1WSJT-PN120R | RSF1WSJT-PN20R | RSF1WSJT-PN220R | RSF1WSJT-PN620K |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 620 Ohms | 62 Ohms | 680 Ohms | 820 Ohms | 120 Ohms | 20 Ohms | 220 Ohms | 620 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
