Please send RFQ , we will respond immediately.

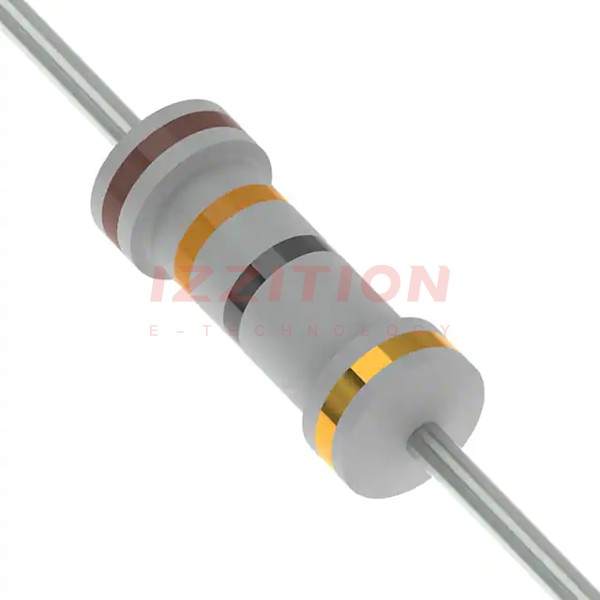

| Part Number | RSF1WSJT-52-13R | RSF1WSJT-52-15R | RSF1WSJT-52-16R | RSF1WSJT-52-18R | RSF1WSJT-52-33R | RSF1WSJT-52-43R | RSF1WSJT-52-10R | RSF1WSJT-52-11R | RSF1WSJT-52-12R | RSF1WSJT-52-130R | RSF1WSJT-52-13K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 13 Ohms | 15 Ohms | 16 Ohms | 18 Ohms | 33 Ohms | 43 Ohms | 10 Ohms | 11 Ohms | 12 Ohms | 130 Ohms | 13 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
