Please send RFQ , we will respond immediately.

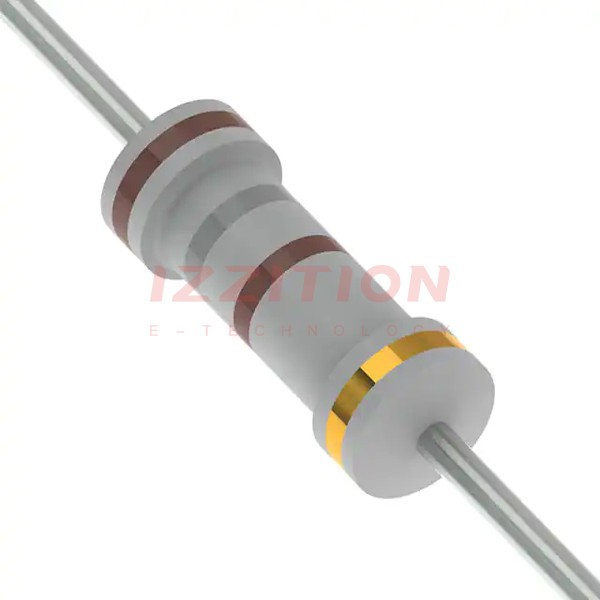

| Part Number | RSF-25JR-52-180R | RSF-25JR-52-18R | RSF-25JR-52-680R | RSF-25JR-52-100R | RSF-25JR-52-10R | RSF-25JR-52-110R | RSF-25JR-52-120R | RSF-25JR-52-130R | RSF-25JR-52-150R | RSF-25JR-52-160R | RSF-25JR-52-180K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 180 Ohms | 18 Ohms | 680 Ohms | 100 Ohms | 10 Ohms | 110 Ohms | 120 Ohms | 130 Ohms | 150 Ohms | 160 Ohms | 180 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film | Metal Oxide Film |
| Features | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety | Flame Proof, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C | -55°C ~ 235°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) | 0.094" Dia x 0.248" L (2.40mm x 6.30mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
