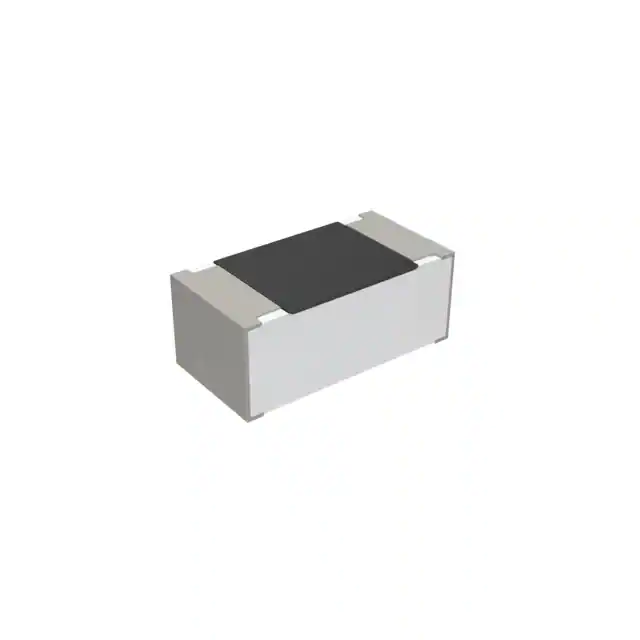

| Part Number | RC0201JR-071RP | RC0201JR-070RP | RC0201JR-0710RP | RC0201JR-0715RP | RC0201JR-071R5P | RC0201JR-071RL |
|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 1 Ohms | 0 Ohms | 10 Ohms | 15 Ohms | 1.5 Ohms | 1 Ohms |
| Tolerance | ±5% | Jumper | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W | 0.05W, 1/20W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | - | - | - | - | - | Moisture Resistant |
| Temperature Coefficient | -100/ +500ppm/°C | - | -100/ +500ppm/°C | ±300ppm/°C | -100/ +500ppm/°C | -100/ +350ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 | 0201 | 0201 | 0201 | 0201 |
| Ratings | - | - | - | - | - | - |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.010" (0.26mm) | 0.010" (0.26mm) | 0.010" (0.26mm) | 0.010" (0.26mm) | 0.010" (0.26mm) | 0.010" (0.26mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
