Please send RFQ , we will respond immediately.

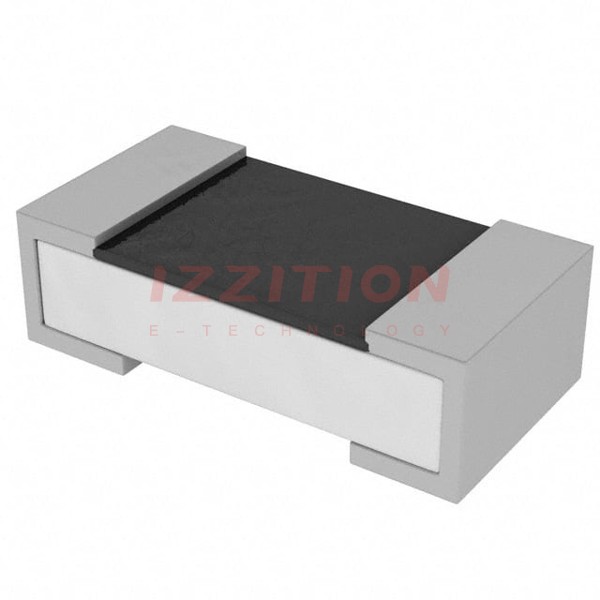

| Part Number | RC0100FR-07165KL | RC0100FR-0716KL | RC0100FR-07165RL | RC0100FR-07169KL | RC0100FR-07105KL | RC0100FR-07115KL | RC0100FR-0715KL | RC0100FR-07160KL | RC0100FR-07162KL |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 165 kOhms | 16 kOhms | 165 Ohms | 169 kOhms | 105 kOhms | 115 kOhms | 15 kOhms | 160 kOhms | 162 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W | 0.03W, 1/32W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package / Case | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) | 01005 (0402 Metric) |
| Supplier Device Package | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 | 01005 |
| Ratings | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Height - Seated (Max) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) | 0.006" (0.15mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
