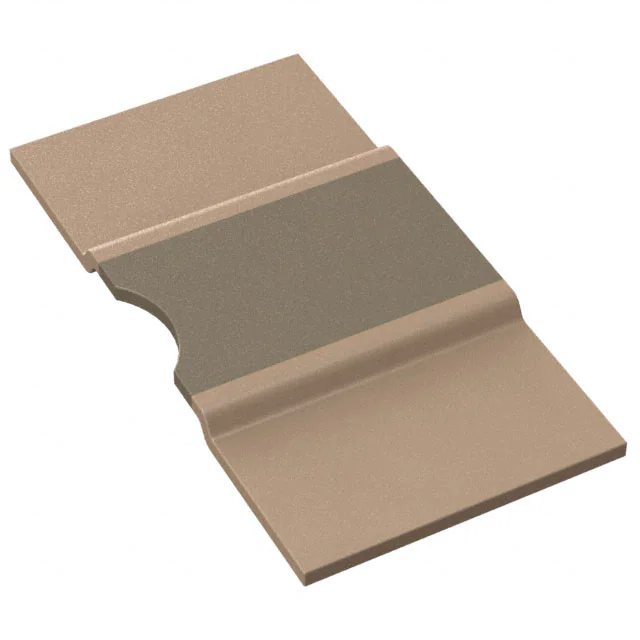

| Part Number | PU5931JKMP70R003L | PU5931JKMP70R004L | PU5931FKMP70R003L | PU5931JKMP70R001L | PU5931JKMP70R002L |
|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 3 mOhms | 4 mOhms | 3 mOhms | 1 MOhms | 2 MOhms |
| Tolerance | ±5% | ±5% | ±1% | ±5% | ±5% |
| Power (Watts) | 7W | 7W | 7W | 7W | 7W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.591" L x 0.305" W (15.00mm x 7.75mm) |
| Height - Seated (Max) | 0.043" (1.09mm) | 0.040" (1.01mm) | 0.069" (1.76mm) | 0.042" (1.06mm) | 0.049" (1.25mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
