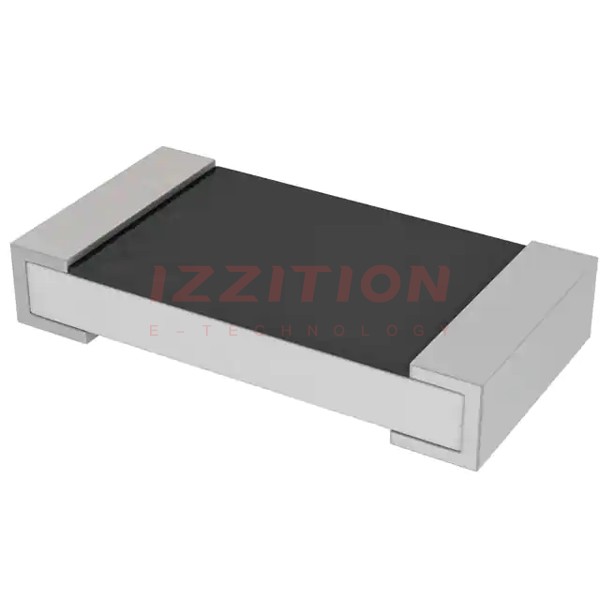

| Part Number | PT1206FR-7W0R2L | PT1206FR-7W0R3L | PT1206FR-7W0R4L | PT1206FR-7W0R5L | PT1206FR-7W0R62L | PT1206FR-7W0R82L | PT1206FR-7W0R12L | PT1206FR-7W0R1L | PT1206FR-7W0R21L | PT1206FR-7W0R22L | PT1206FR-7W0R24L | PT1206FR-7W0R25L | PT1206FR-7W0R27L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 200 mOhms | 300 mOhms | 400 mOhms | 500 mOhms | 620 mOhms | 820 mOhms | 120 mOhms | 100 mOhms | 210 mOhms | 220 mOhms | 240 mOhms | 250 mOhms | 270 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
