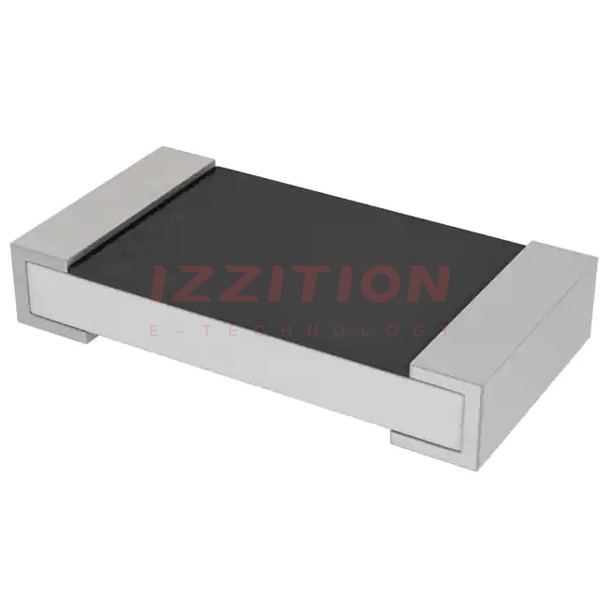

| Part Number | PT1206FR-070R15L | PT1206FR-070R1L | PT1206FR-070R25L | PT1206FR-070R165L | PT1206FR-070R5L | PT1206FR-070R75L | PT1206JR-070R15L | PT1206FR-070R16L | PT1206FR-070R18L | PT1206FR-070R05L | PT1206FR-070R12L | PT1206FR-070R13L | PT1206FR-070R14L | PT1206FR-070R154L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 150 mOhms | 100 mOhms | 250 mOhms | 165 mOhms | 500 mOhms | 750 mOhms | 150 mOhms | 160 mOhms | 180 mOhms | 50 mOhms | 120 mOhms | 130 mOhms | 140 mOhms | 154 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W | 0.25W, 1/4W |
| Composition | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±75ppm/°C | ±100ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±350ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) | 0.122" L x 0.063" W (3.10mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) | 0.026" (0.65mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
