Please send RFQ , we will respond immediately.

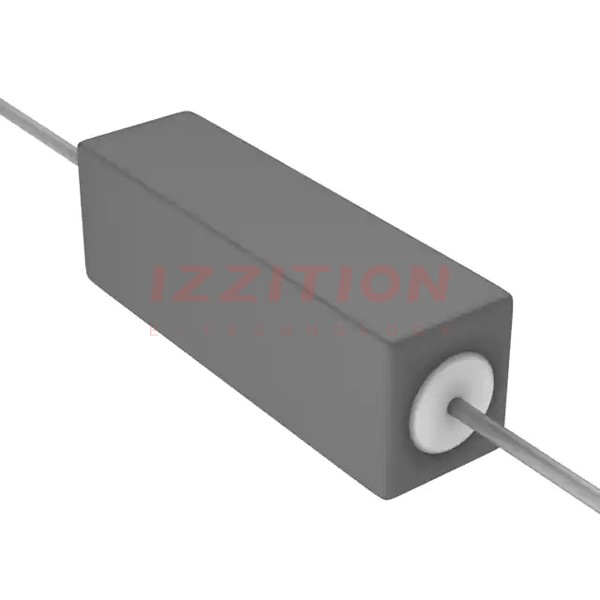

| Part Number | PSP500JB-100R | PSP500JB-160R | PSP500JB-180R | PSP500KB-100R | PSP700JB-100R | PSP500JB-10R | PSP500JB-120R | PSP500JB-150R | PSP500JB-130R | PSP500JR-100R | PSP500JB-300R | PSP400JB-100R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 100 Ohms | 160 Ohms | 180 Ohms | 100 Ohms | 100 Ohms | 10 Ohms | 120 Ohms | 150 Ohms | 130 Ohms | 100 Ohms | 300 Ohms | 100 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 5W | 5W | 5W | 5W | 7W | 5W | 5W | 5W | 5W | 5W | 5W | 4W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 1.496" L (6.40mm x 38.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.984" L (6.40mm x 25.00mm) | 0.252" Square x 0.787" L (6.40mm x 20.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
