Please send RFQ , we will respond immediately.

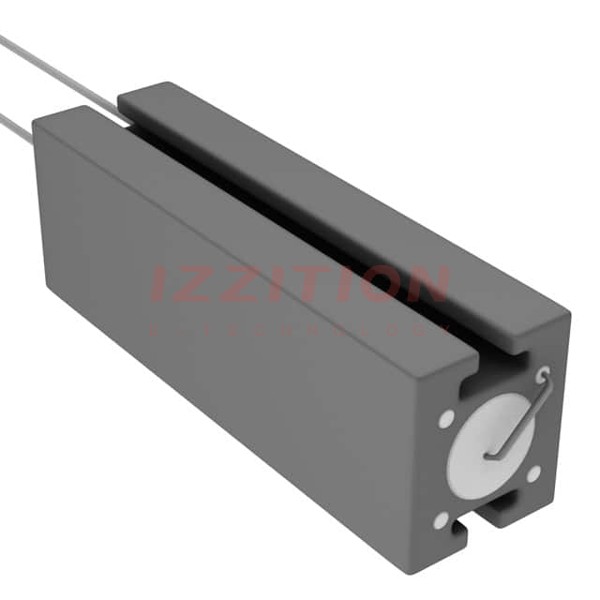

| Part Number | PSM7WSJB-150R | PSM7WSJB-15R | PSM7WSJB-180R | PSM7WSJB-750R | PSM7WSJB-100R | PSM7WSJB-10R | PSM7WSJB-120R |
|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 150 Ohms | 15 Ohms | 180 Ohms | 750 Ohms | 100 Ohms | 10 Ohms | 120 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 7W | 7W | 7W | 7W | 7W | 7W | 7W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety | Anti-Arc, Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.984" L x 0.354" W (25.00mm x 9.00mm) | 0.984" L x 0.354" W (25.00mm x 9.00mm) | 0.984" L x 0.354" W (25.00mm x 9.00mm) | 0.984" L x 0.354" W (25.00mm x 9.00mm) | 0.984" L x 0.354" W (25.00mm x 9.00mm) | 0.984" L x 0.354" W (25.00mm x 9.00mm) | 0.984" L x 0.354" W (25.00mm x 9.00mm) |
| Height - Seated (Max) | 0.409" (10.40mm) | 0.409" (10.40mm) | 0.409" (10.40mm) | 0.409" (10.40mm) | 0.409" (10.40mm) | 0.409" (10.40mm) | 0.409" (10.40mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
