Please send RFQ , we will respond immediately.

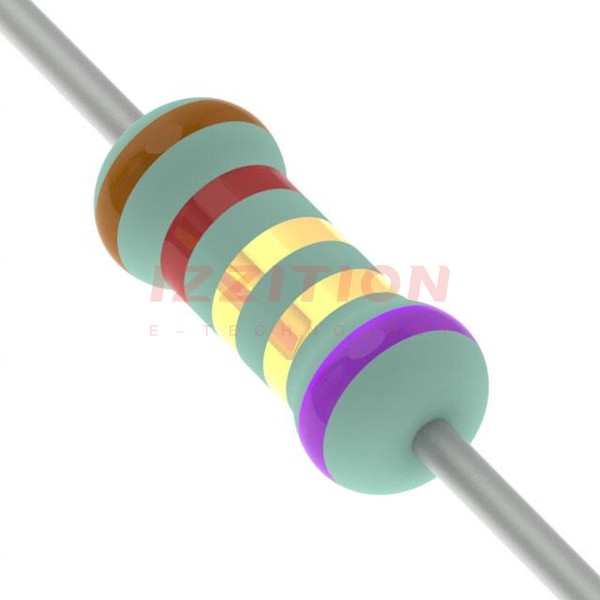

| Part Number | PNP7WVJT-91-1R2 | PNP7WVJT-91-1R3 | PNP7WVJT-91-1R5 | PNP7WVJT-91-1R6 | PNP7WVJT-91-1R8 | PNP7WVJT-91-2R2 | PNP7WVJT-91-6R2 | PNP7WVJT-91-8R2 | PNP7WVJT-91-0R2 | PNP7WVJT-91-1K2 | PNP7WVJT-91-1R | PNP7WVJT-91-1R1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1.2 Ohms | 1.3 Ohms | 1.5 Ohms | 1.6 Ohms | 1.8 Ohms | 2.2 Ohms | 6.2 Ohms | 8.2 Ohms | 200 mOhms | 1.2 kOhms | 1 Ohms | 1.1 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | - | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
