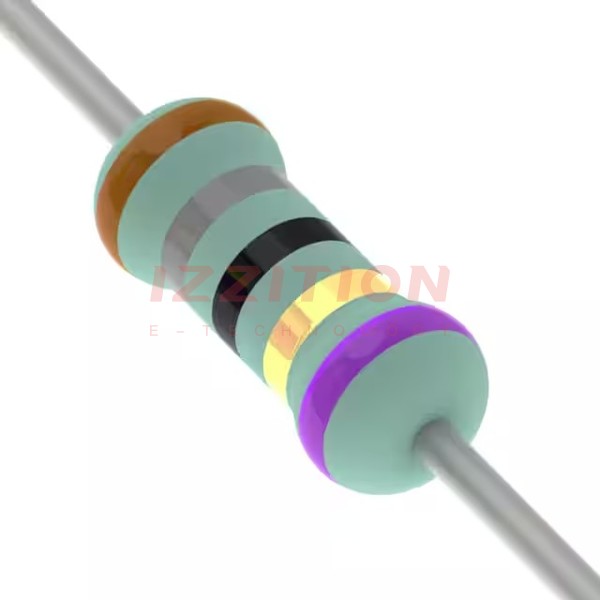

| Part Number | PNP7WVJT-91-18R | PNP7WVJT-91-68R | PNP7WVJT-91-1R | PNP7WVJT-91-10R | PNP7WVJT-91-11R | PNP7WVJT-91-12R | PNP7WVJT-91-13R | PNP7WVJT-91-15R | PNP7WVJT-91-16R | PNP7WVJT-91-180R |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 18 Ohms | 68 Ohms | 1 Ohms | 10 Ohms | 11 Ohms | 12 Ohms | 13 Ohms | 15 Ohms | 16 Ohms | 180 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W | 7W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | - | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
