PNP7WVJT-91-0R3
  • Share:

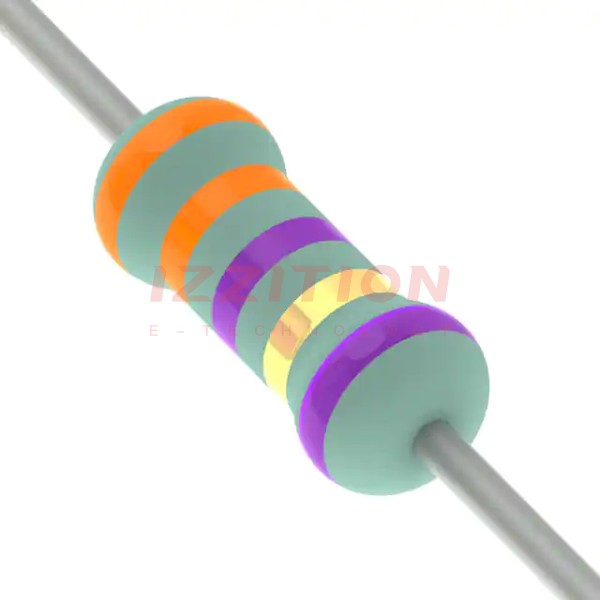

YAGEO PNP7WVJT-91-0R3

Manufacturer No:
PNP7WVJT-91-0R3
Manufacturer:
YAGEO
Package:
Tape & Box (TB)
Datasheet:
PNP7WVJT-91-0R3 Datasheet
ECAD Model:
-
Description:
RES 0.3 OHM 5% 7W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:300 mOhms
Tolerance:±5%
Power (Watts):7W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.295" Dia x 0.984" L (7.50mm x 25.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.33
290

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP7WVJT-91-0R3 PNP7WVJT-91-1R3   PNP7WVJT-91-3R3   PNP7WVJT-91-4R3   PNP7WVJT-91-0R33   PNP7WVJT-91-0R36   PNP7WVJT-91-0R39   PNP7WVJT-91-0R43   PNP7WVJT-91-0R5   PNP7WVJT-91-0R1   PNP7WVJT-91-0R13   PNP7WVJT-91-0R2
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active Active Active Active Active Active Active
Resistance 300 mOhms 1.3 Ohms 3.3 Ohms 4.3 Ohms 330 mOhms 360 mOhms 390 mOhms 430 mOhms 500 mOhms 100 mOhms 130 mOhms 200 mOhms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 7W 7W 7W 7W 7W 7W 7W 7W 7W 7W 7W 7W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm) 0.295" Dia x 0.984" L (7.50mm x 25.00mm)
Height - Seated (Max) - - - - - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - - - - - -
