Please send RFQ , we will respond immediately.

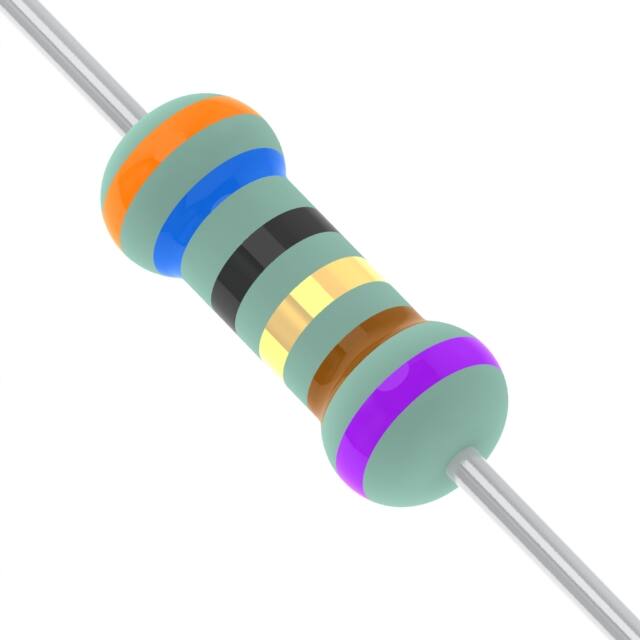

| Part Number | PNP7WVFT-91-36R | PNP7WVFT-91-3R | PNP7WVFT-91-39R | PNP7WVFT-91-56R | PNP7WVFT-91-30R | PNP7WVFT-91-33R | PNP7WVFT-91-360R |
|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 36 Ohms | 3 Ohms | 39 Ohms | 56 Ohms | 30 Ohms | 33 Ohms | 360 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 7W | 7W | 7W | 7W | 7W | 7W | 7W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) | 0.295" Dia x 0.984" L (7.50mm x 25.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - |
