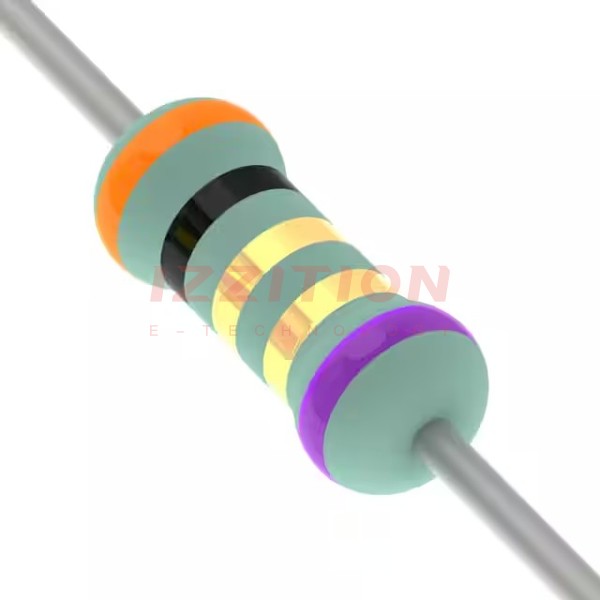

| Part Number | PNP5WVJT-73-3R | PNP5WVJT-73-5R | PNP5WVJT-73-3R3 | PNP5WVJT-73-3R6 | PNP5WVJT-73-3R9 | PNP5WVJT-73-43R | PNP5WVJR-73-3R | PNP5WVJT-73-13R | PNP5WVJT-73-1R | PNP5WVJT-73-2R | PNP5WVJT-73-30R | PNP5WVJT-73-33R | PNP5WVJT-73-36R | PNP5WVJT-73-39R | PNP5WVJT-73-3K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 3 Ohms | 5 Ohms | 3.3 Ohms | 3.6 Ohms | 3.9 Ohms | 43 Ohms | 3 Ohms | 13 Ohms | 1 Ohms | 2 Ohms | 30 Ohms | 33 Ohms | 36 Ohms | 39 Ohms | 3 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | - | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
