Please send RFQ , we will respond immediately.

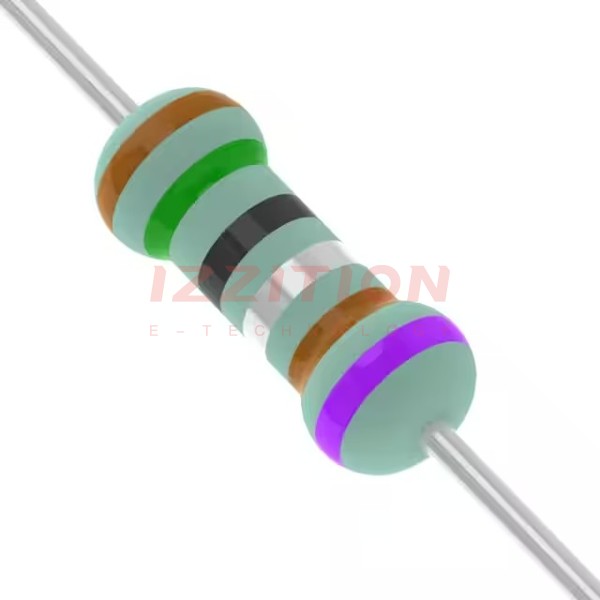

| Part Number | PNP5WVJT-73-1R5 | PNP5WVJT-73-1R6 | PNP5WVJT-73-1R8 | PNP5WVJT-73-7R5 | PNP5WVJR-73-1R5 | PNP5WVJT-73-1R | PNP5WVJT-73-1R1 | PNP5WVJT-73-1R2 | PNP5WVJT-73-1R3 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1.5 Ohms | 1.6 Ohms | 1.8 Ohms | 7.5 Ohms | 1.5 Ohms | 1 Ohms | 1.1 Ohms | 1.2 Ohms | 1.3 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
