PNP5WVJT-73-0R56
  • Share:

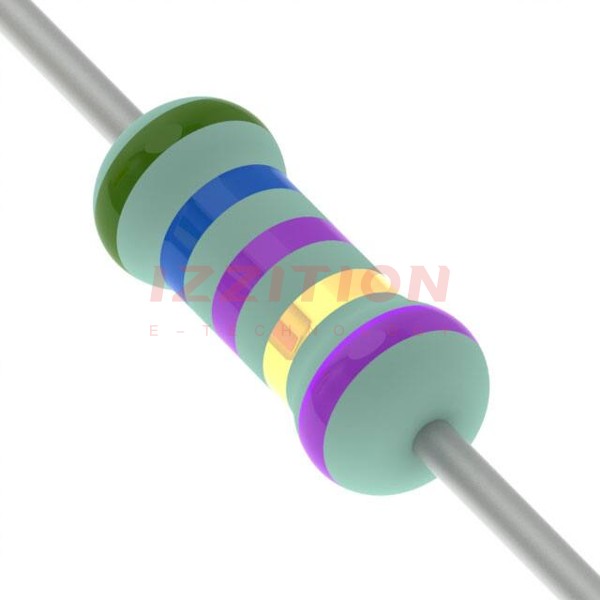

YAGEO PNP5WVJT-73-0R56

Manufacturer No:
PNP5WVJT-73-0R56
Manufacturer:
YAGEO
Package:
Tape & Box (TB)
Datasheet:
PNP5WVJT-73-0R56 Datasheet
ECAD Model:
-
Description:
RES 0.56 OHM 5% 5W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:560 mOhms
Tolerance:±5%
Power (Watts):5W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.295" Dia x 0.669" L (7.50mm x 17.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.22
793

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP5WVJT-73-0R56 PNP5WVJR-73-0R56   PNP5WVJT-73-0R16   PNP5WVJT-73-0R36   PNP5WVJT-73-0R51
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active
Resistance 560 mOhms 560 mOhms 160 mOhms 360 mOhms 510 mOhms
Tolerance ±5% ±5% ±5% ±5% ±5%
Power (Watts) 5W 5W 5W 5W 5W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C - ±300ppm/°C ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial
Size / Dimension 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm)
Height - Seated (Max) - - - - -
Number of Terminations 2 2 2 2 2
Failure Rate - - - - -
