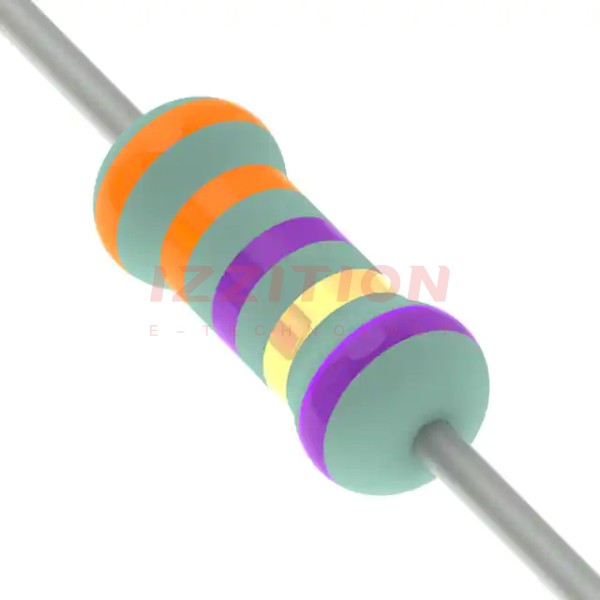

| Part Number | PNP5WVJT-73-0R3 | PNP5WVJT-73-0R33 | PNP5WVJT-73-1R3 | PNP5WVJT-73-3R3 | PNP5WVJT-73-4R3 | PNP5WVJT-73-0R36 | PNP5WVJT-73-0R39 | PNP5WVJT-73-0R43 | PNP5WVJR-73-0R3 | PNP5WVJT-73-0R1 | PNP5WVJT-73-0R13 | PNP5WVJT-73-0R2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 300 mOhms | 330 mOhms | 1.3 Ohms | 3.3 Ohms | 4.3 Ohms | 360 mOhms | 390 mOhms | 430 mOhms | 300 mOhms | 100 mOhms | 130 mOhms | 200 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) | 0.295" Dia x 0.669" L (7.50mm x 17.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
