PNP5WVJT-73-0R22
  • Share:

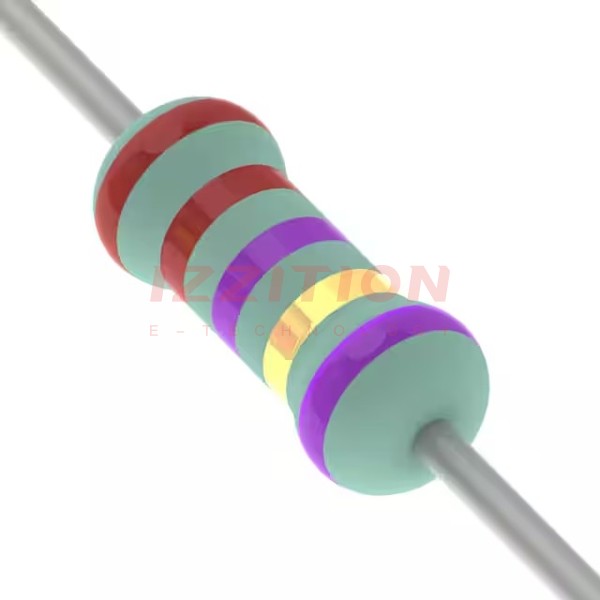

YAGEO PNP5WVJT-73-0R22

Manufacturer No:
PNP5WVJT-73-0R22
Manufacturer:
YAGEO
Package:
Tape & Box (TB)
Datasheet:
PNP5WVJT-73-0R22 Datasheet
ECAD Model:
-
Description:
RES 0.22 OHM 5% 5W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:220 mOhms
Tolerance:±5%
Power (Watts):5W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.295" Dia x 0.669" L (7.50mm x 17.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.22
4,308

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP5WVJT-73-0R22 PNP5WVJT-73-0R24   PNP5WVJT-73-0R27   PNP5WVJT-73-0R62   PNP5WVJT-73-0R82   PNP5WVJR-73-0R22   PNP5WVJT-73-0R12   PNP5WVJT-73-0R2
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active Active Active
Resistance 220 mOhms 240 mOhms 270 mOhms 620 mOhms 820 mOhms 220 mOhms 120 mOhms 200 mOhms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 5W 5W 5W 5W 5W 5W 5W 5W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C - ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm)
Height - Seated (Max) - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - -
