PNP5WVJT-73-0R12
  • Share:

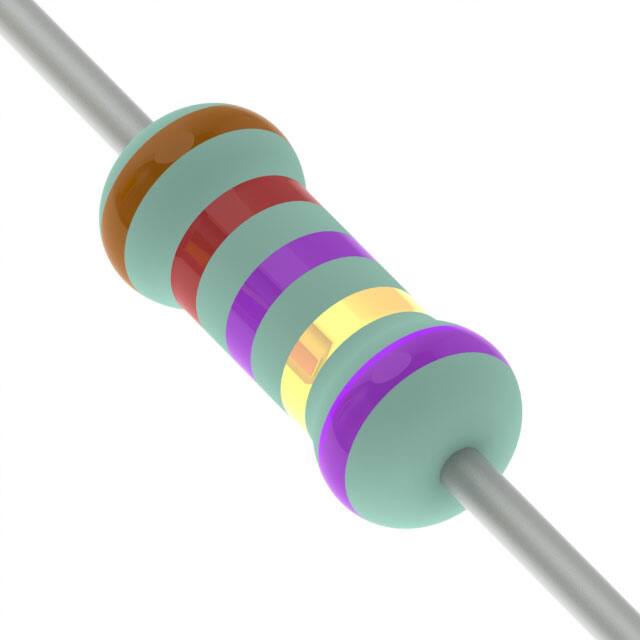

YAGEO PNP5WVJT-73-0R12

Manufacturer No:
PNP5WVJT-73-0R12
Manufacturer:
YAGEO
Package:
Tape & Box (TB)
Datasheet:
PNP5WVJT-73-0R12 Datasheet
ECAD Model:
-
Description:
RES 0.12 OHM 5% 5W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:120 mOhms
Tolerance:±5%
Power (Watts):5W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.295" Dia x 0.669" L (7.50mm x 17.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.22
1,163

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP5WVJT-73-0R12 PNP5WVJT-73-0R13   PNP5WVJT-73-0R15   PNP5WVJT-73-0R16   PNP5WVJT-73-0R18   PNP5WVJT-73-0R2   PNP5WVJT-73-0R22   PNP5WVJT-73-0R62   PNP5WVJT-73-0R82   PNP5WVJR-73-0R12   PNP5WVJT-73-0R1   PNP5WVJT-73-0R11
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active Active Active Active Active Active Active
Resistance 120 mOhms 130 mOhms 150 mOhms 160 mOhms 180 mOhms 200 mOhms 220 mOhms 620 mOhms 820 mOhms 120 mOhms 100 mOhms 110 mOhms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C - ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm) 0.295" Dia x 0.669" L (7.50mm x 17.00mm)
Height - Seated (Max) - - - - - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - - - - - -
