Please send RFQ , we will respond immediately.

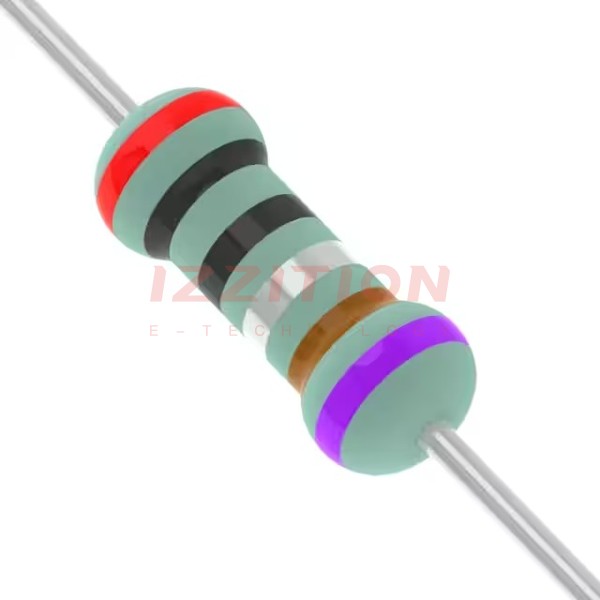

| Part Number | PNP4WVFR-73-2R | PNP4WVJR-73-2R | PNP4WVFR-73-3R | PNP4WVFR-73-5R | PNP4WVFR-73-12R | PNP4WVFR-73-20R | PNP4WVFR-73-22R | PNP4WVFR-73-25R | PNP4WVFR-73-27R | PNP4WVFR-73-2K |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 2 Ohms | 2 Ohms | 3 Ohms | 5 Ohms | 12 Ohms | 20 Ohms | 22 Ohms | 25 Ohms | 27 Ohms | 2 kOhms |
| Tolerance | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 4W | 4W | 4W | 4W | 4W | 4W | 4W | 4W | 4W | 4W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
