PNP4WVFR-73-20R
  • Share:

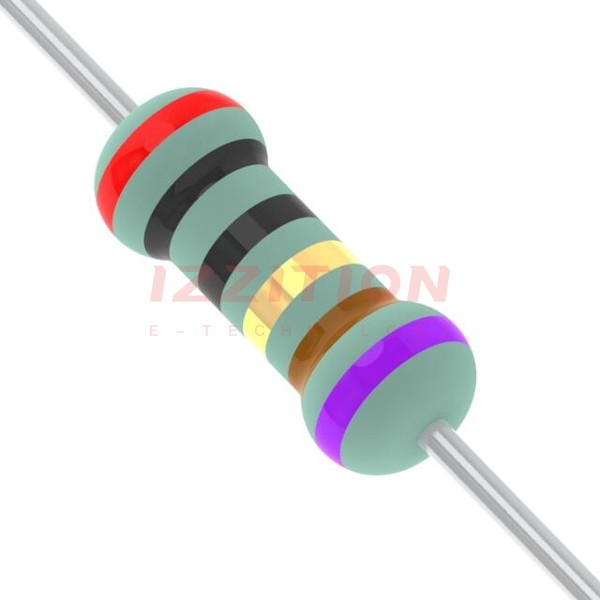

YAGEO PNP4WVFR-73-20R

Manufacturer No:
PNP4WVFR-73-20R
Manufacturer:
YAGEO
Package:
Tape & Reel (TR)
Datasheet:
PNP4WVFR-73-20R Datasheet
ECAD Model:
-
Description:
RES 20 OHM 1% 4W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:20 Ohms
Tolerance:±1%
Power (Watts):4W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.217" Dia x 0.669" L (5.50mm x 17.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.26
102

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP4WVFR-73-20R PNP4WVJR-73-20R   PNP4WVFR-73-22R   PNP4WVFR-73-250R   PNP4WVFR-73-25R   PNP4WVFR-73-270R   PNP4WVFR-73-27R   PNP4WVFR-73-30R   PNP4WVFR-73-50R   PNP4WVFR-73-2R   PNP4WVFR-73-10R   PNP4WVFR-73-120R   PNP4WVFR-73-200R
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active Active Active Active Active Active Active Active
Resistance 20 Ohms 20 Ohms 22 Ohms 250 Ohms 25 Ohms 270 Ohms 27 Ohms 30 Ohms 50 Ohms 2 Ohms 10 Ohms 120 Ohms 200 Ohms
Tolerance ±1% ±5% ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Power (Watts) 4W 4W 4W 4W 4W 4W 4W 4W 4W 4W 4W 4W 4W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm) 0.217" Dia x 0.669" L (5.50mm x 17.00mm)
Height - Seated (Max) - - - - - - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - - - - - - -
