Please send RFQ , we will respond immediately.

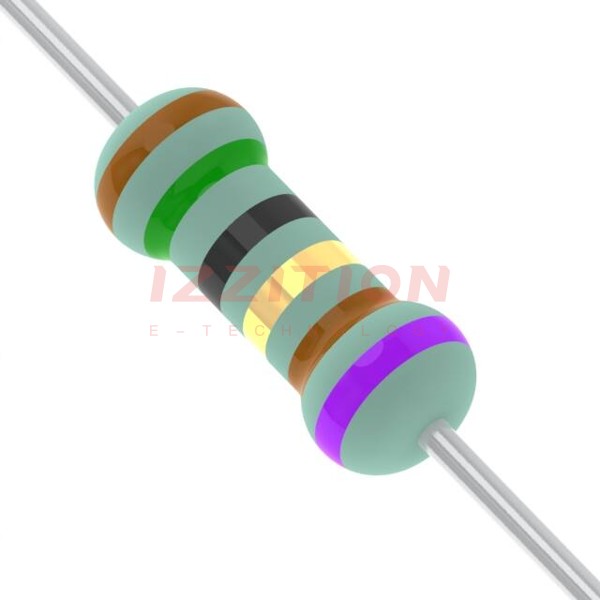

| Part Number | PNP4WVFR-73-15R | PNP4WVJR-73-15R | PNP4WVFR-73-18R | PNP4WVFR-73-25R | PNP4WVFR-73-5R | PNP4WVFR-73-10R | PNP4WVFR-73-12R | PNP4WVFR-73-150R |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 15 Ohms | 15 Ohms | 18 Ohms | 25 Ohms | 5 Ohms | 10 Ohms | 12 Ohms | 150 Ohms |
| Tolerance | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 4W | 4W | 4W | 4W | 4W | 4W | 4W | 4W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) | 0.217" Dia x 0.669" L (5.50mm x 17.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
