Please send RFQ , we will respond immediately.

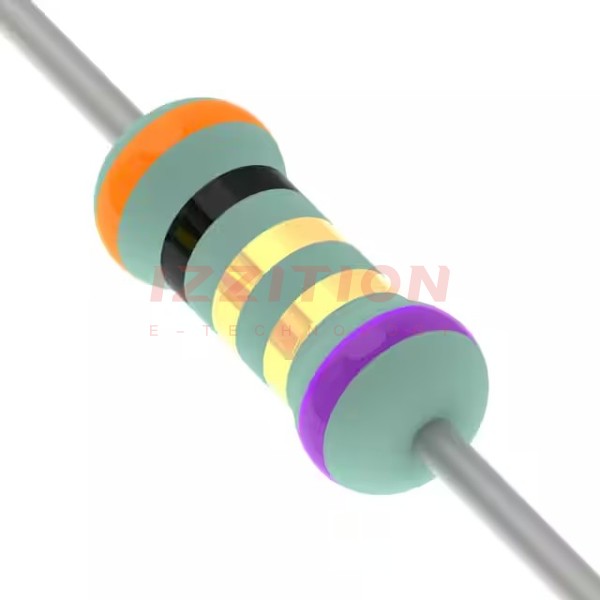

| Part Number | PNP3WVJT-73-3R | PNP3WVJT-73-3R3 | PNP3WVJT-73-3R6 | PNP3WVJT-73-3R9 | PNP3WVJT-73-43R | PNP3WVJT-73-13R | PNP3WVJT-73-1R | PNP3WVJT-73-2R | PNP3WVJT-73-30R | PNP3WVJT-73-33R | PNP3WVJT-73-36R | PNP3WVJT-73-39R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 3 Ohms | 3.3 Ohms | 3.6 Ohms | 3.9 Ohms | 43 Ohms | 13 Ohms | 1 Ohms | 2 Ohms | 30 Ohms | 33 Ohms | 36 Ohms | 39 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
