PNP3WVJT-73-1R2
  • Share:

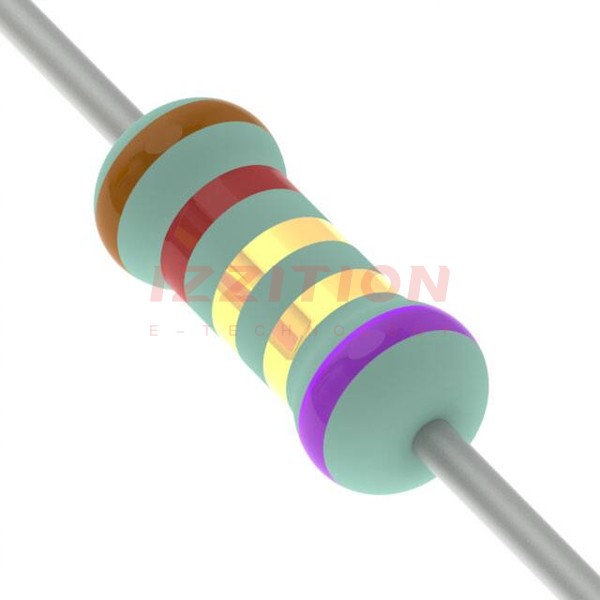

YAGEO PNP3WVJT-73-1R2

Manufacturer No:
PNP3WVJT-73-1R2
Manufacturer:
YAGEO
Package:
Tape & Box (TB)
Datasheet:
PNP3WVJT-73-1R2 Datasheet
ECAD Model:
-
Description:
RES 1.2 OHM 5% 3W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:1.2 Ohms
Tolerance:±5%
Power (Watts):3W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.217" Dia x 0.512" L (5.50mm x 13.00mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.10
5,097

Please send RFQ , we will respond immediately.
