Please send RFQ , we will respond immediately.

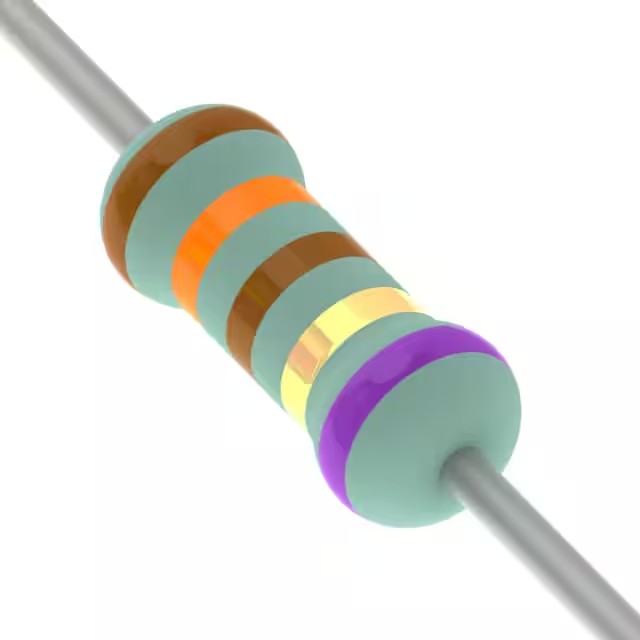

| Part Number | PNP3WVJT-73-130R | PNP3WVJT-73-13R | PNP3WVJT-73-150R | PNP3WVJT-73-160R | PNP3WVJT-73-180R | PNP3WVJT-73-30R | PNP3WVJT-73-330R | PNP3WVJT-73-430R | PNP3WVJT-73-100R | PNP3WVJT-73-10R | PNP3WVJT-73-110R | PNP3WVJT-73-120R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 130 Ohms | 13 Ohms | 150 Ohms | 160 Ohms | 180 Ohms | 30 Ohms | 330 Ohms | 430 Ohms | 100 Ohms | 10 Ohms | 110 Ohms | 120 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) | 0.217" Dia x 0.512" L (5.50mm x 13.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
