PNP300JR-73-56R
  • Share:

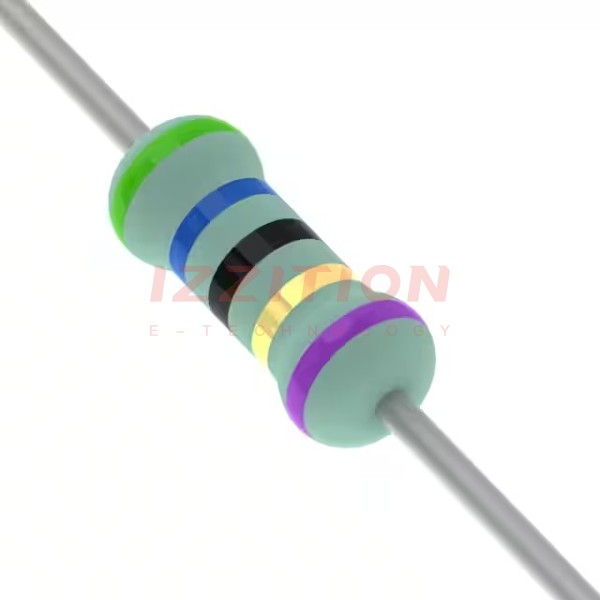

YAGEO PNP300JR-73-56R

Manufacturer No:
PNP300JR-73-56R
Manufacturer:
YAGEO
Package:
Tape & Reel (TR)
Datasheet:
PNP300JR-73-56R Datasheet
ECAD Model:
-
Description:
RES 56 OHM 5% 3W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:56 Ohms
Tolerance:±5%
Power (Watts):3W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:-
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.181" Dia x 0.453" L (4.60mm x 11.50mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.56
1,411

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP300JR-73-56R PNP300JR-73-16R   PNP300JR-73-36R   PNP300JR-73-51R
Manufacturer YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active
Resistance 56 Ohms 16 Ohms 36 Ohms 51 Ohms
Tolerance ±5% ±5% ±5% ±5%
Power (Watts) 3W 3W 3W 3W
Composition Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient - ±300ppm/°C ±300ppm/°C ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial
Size / Dimension 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm)
Height - Seated (Max) - - - -
Number of Terminations 2 2 2 2
Failure Rate - - - -
