Please send RFQ , we will respond immediately.

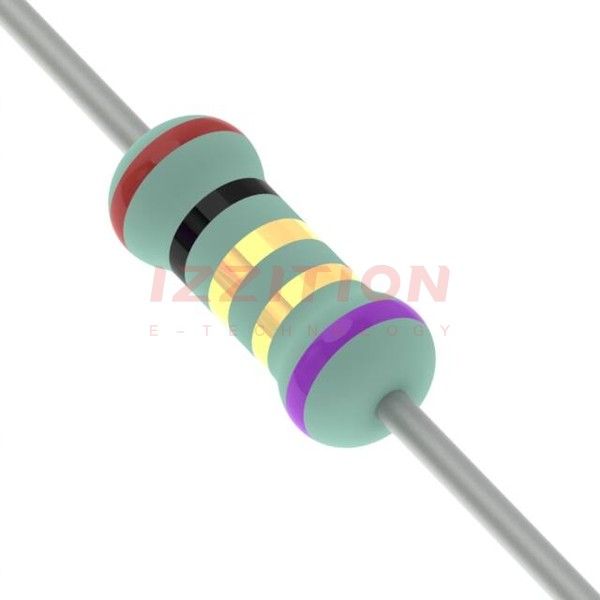

| Part Number | PNP300JR-73-2R | PNP300JR-73-2R7 | PNP300JR-73-2R2 | PNP300JR-73-2R4 | PNP300JR-73-3R | PNP300JR-73-62R | PNP300JR-73-82R | PNP300JR-73-12R | PNP300JR-73-1R | PNP300JR-73-20R | PNP300JR-73-22R | PNP300JR-73-24R | PNP300JR-73-27R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO | YAGEO |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 2 Ohms | 2.7 Ohms | 2.2 Ohms | 2.4 Ohms | 3 Ohms | 62 Ohms | 82 Ohms | 12 Ohms | 1 Ohms | 20 Ohms | 22 Ohms | 24 Ohms | 27 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±300ppm/°C | - | - | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | - | - | ±300ppm/°C | - | ±300ppm/°C | - |
| Operating Temperature | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C | -40°C ~ 200°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) | 0.181" Dia x 0.453" L (4.60mm x 11.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
