PNP300JR-73-20R
  • Share:

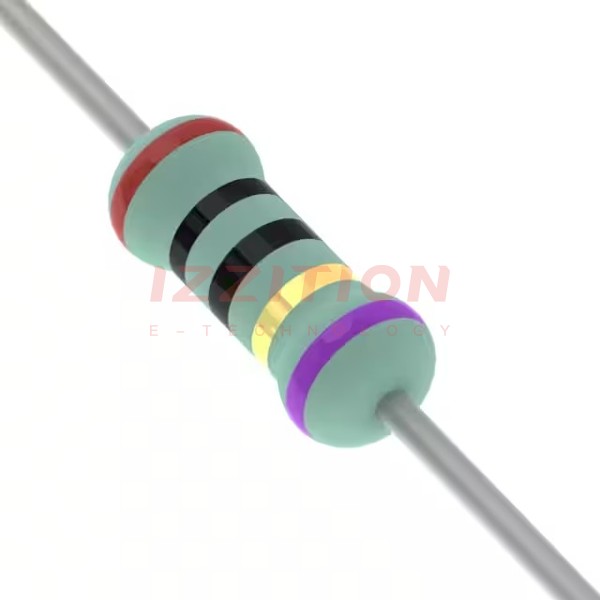

YAGEO PNP300JR-73-20R

Manufacturer No:
PNP300JR-73-20R
Manufacturer:
YAGEO
Package:
Tape & Reel (TR)
Datasheet:
PNP300JR-73-20R Datasheet
ECAD Model:
-
Description:
RES 20 OHM 5% 3W AXIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:20 Ohms
Tolerance:±5%
Power (Watts):3W
Composition:Wirewound
Features:Flame Retardant Coating, Safety
Temperature Coefficient:±300ppm/°C
Operating Temperature:-40°C ~ 200°C
Package / Case:Axial
Supplier Device Package:Axial
Size / Dimension:0.181" Dia x 0.453" L (4.60mm x 11.50mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$0.08
6,944

Please send RFQ , we will respond immediately.

Similar Products

Part Number PNP300JR-73-20R PNP300JR-73-22R   PNP300JR-73-27R   PNP300JR-73-24R   PNP300JR-73-2R   PNP300JR-73-30R   PNP300JR-73-220R   PNP300JR-73-240R   PNP300JR-73-270R   PNP300JR-73-10R   PNP300JR-73-120R   PNP300JR-73-200R
Manufacturer YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO YAGEO
Product Status Active Active Active Active Active Active Active Active Active Active Active Active
Resistance 20 Ohms 22 Ohms 27 Ohms 24 Ohms 2 Ohms 30 Ohms 220 Ohms 240 Ohms 270 Ohms 10 Ohms 120 Ohms 200 Ohms
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Power (Watts) 3W 3W 3W 3W 3W 3W 3W 3W 3W 3W 3W 3W
Composition Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Features Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety Flame Retardant Coating, Safety
Temperature Coefficient ±300ppm/°C - - ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C ±300ppm/°C - - ±300ppm/°C
Operating Temperature -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C -40°C ~ 200°C
Package / Case Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Supplier Device Package Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial Axial
Size / Dimension 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm) 0.181" Dia x 0.453" L (4.60mm x 11.50mm)
Height - Seated (Max) - - - - - - - - - - - -
Number of Terminations 2 2 2 2 2 2 2 2 2 2 2 2
Failure Rate - - - - - - - - - - - -
